TE 5229913-1 Replacement Connector, IDC D-Sub, Receptacle Kit, Signal, 50 pin, 2.16 mm Pitch

Name: TE 52299131 Replacement Connector IDC DSub Receptacle Kit Signal 50 pin 216 mm Pitch
Brand: FUYCONN
Price: 1 USD

Quality TE 5229913-1 Replacement Connector, IDC D-Sub, Receptacle Kit, Signal, 50 pin, 2.16 mm Pitch for sale

Pitch : 2.16mm

Replacement : TE 5229913-1

Connector Style : Receptacle

Gender : Female

Product Line : Champ Connector

Number of Terminal : 50pin

Type : Centronic IDC Connector

Brand Name : FUYCONN

Model Number : FUY57146A

Certification : UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004

Place of Origin : China

MOQ : 1000pcs

Price : Negotiable

Payment Terms : T/T or Paypal

Supply Ability : 1 million/ month

Delivery Time : 7-10 days

Packaging Details : Vacuum Tray + Carton

Product Name : Centronics Connector

Cover : Right Angle 90 degree

Contact Now

TE 5229913-1 Replacement Connector, IDC D-Sub, Receptacle Kit, Signal, 50 pin, 2.16 mm Pitch

IDC D-sub CHAMP docking receptacle connector kit, intended for cable to cable, cable to board and cable to panel applications with Insulation Displacement Crimp (IDC) mass termination. Has a centerline pitch of 2.16 mm, available in 50 positions and used for signal circuit application.

Technology Parameters

TE 5229913-1 Replacement Connector, IDC D-Sub, Receptacle Kit, Signal, 50 pin, 2.16 mm Pitch

Product Features

Number of Positions: 50
Connector & Housing Type: Receptacle
Connector System: Cable-to-Board | Cable-to-Cable | Cable-to-Panel
Connector Mounting Type: Cable Mount (Free-Hanging) | Panel Mount
Centerline (Pitch): 2.16 mm [.085 in]

Product Type Features

Connector & Housing Type: Receptacle
Connector System: Cable-to-Board | Cable-to-Cable | Cable-to-Panel
Connector Product Type: Connector Kit
Connector & Contact Terminates To: Wire & Cable

Configuration Features

Number of Positions: 50
Number of Rows: 2
Compatible With Wire & Cable Type: Discrete Wire | Round Jacketed Cable

Body Features

Primary Product Color: Black
Cover Material: Polyethylene | Polyphenylene Oxide | Thermoplastic
Shield Material: Carbon Steel
Connector Profile: Standard
Cable Exit Angle: 90°
Shield Plating Material: No

Contact Features

Contact Mating Area Plating Material Thickness: 30 µin
Contact Underplating Material: Palladium Nickel
Contact Mating Area Plating Material: Gold (Au) | Gold or Gold Flash
Contact Base Material: Copper Alloy | Phosphor Bronze
Contact Mating Area Plating Material Thickness: .76 µm [30 µin]
Contact Current Rating (Max): .5 A
Contact Options: Supplied - Uninstalled

Termination Features

Termination Method to Wire & Cable: Insulation Displacement (IDC)

Mechanical Attachment

Mating Retention With
Thread Size: 4-40 | 4-40 UNC 2B
Mating Retention Type: Screwlocks
Connector Mounting Type: Cable Mount (Free-Hanging) | Panel Mount

Housing Features

Housing Material: Polyphenylene Oxide | Thermoplastic
Centerline (Pitch): 2.16 mm [.085 in]

Dimensions

Compatible Insulation Diameter Range: .045 in
Compatible Cable Insulation Diameter Range: 8.89 - 15.88 mm | 8.89 - 10.8 mm | 10.8 - 12.7 mm
Compatible Cable Insulation Diameter Range: .35 - .625 in | .35 - .425 in | .425 - .5 in
Compatible Cable Diameter (Max): 10.8 mm | 12.7 mm
Compatible Cable Diameter (Max): .425 in | .5 in
Solid Wire Size: .13 - .32 mm²
Compatible Insulation Diameter (Max): 1.14 mm [.045 in]
Solid Wire Size: 26 - 24 AWG
Stranded Wire Size: 24 | 26 | 27 | 28 AWG
Stranded Wire Size: .09 | .1 | .14 | .33 mm²
Wire Size: 24 | 26 | 26 - 24 | 28 AWG

Product Tags:

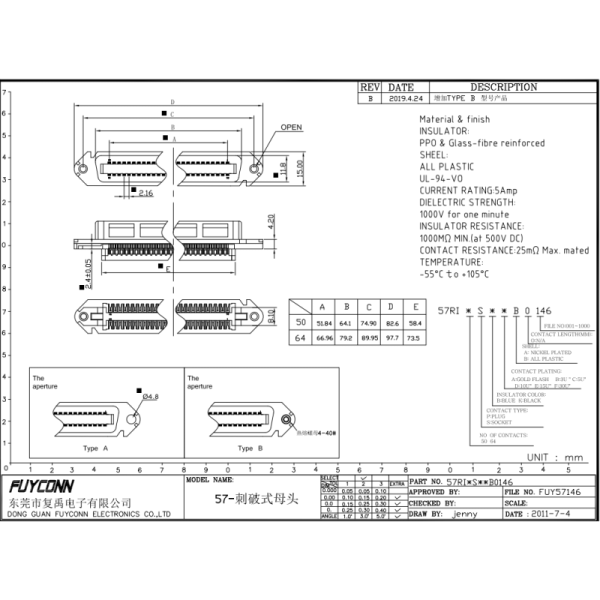

TE 5229913-1 Replacement Connector, IDC D-Sub, Receptacle Kit, Signal, 50 pin, 2.16 mm Pitch Images
